Key Benefits of Using the HUBER System

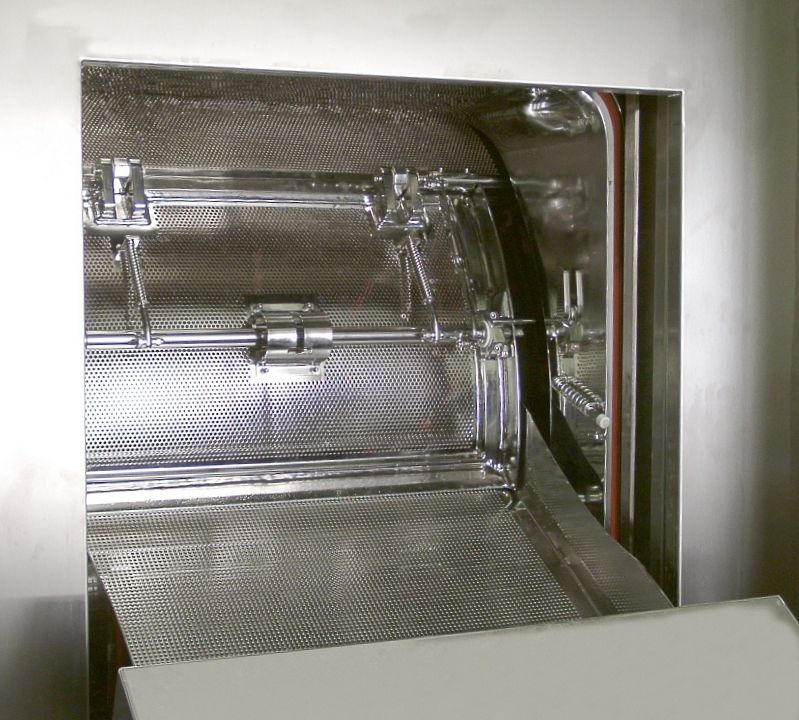

bulletDirect Impact Cleaning sprays cover every square
millimeter of the interior surface.
bulletMachines continually self clean with patented CIP
bulletSIP Steam In Place for precise vaporization of chamber
and inner drum surfaces through rotating steam nozzles.
bulletLowest residual moisture for lyophilized stoppers.

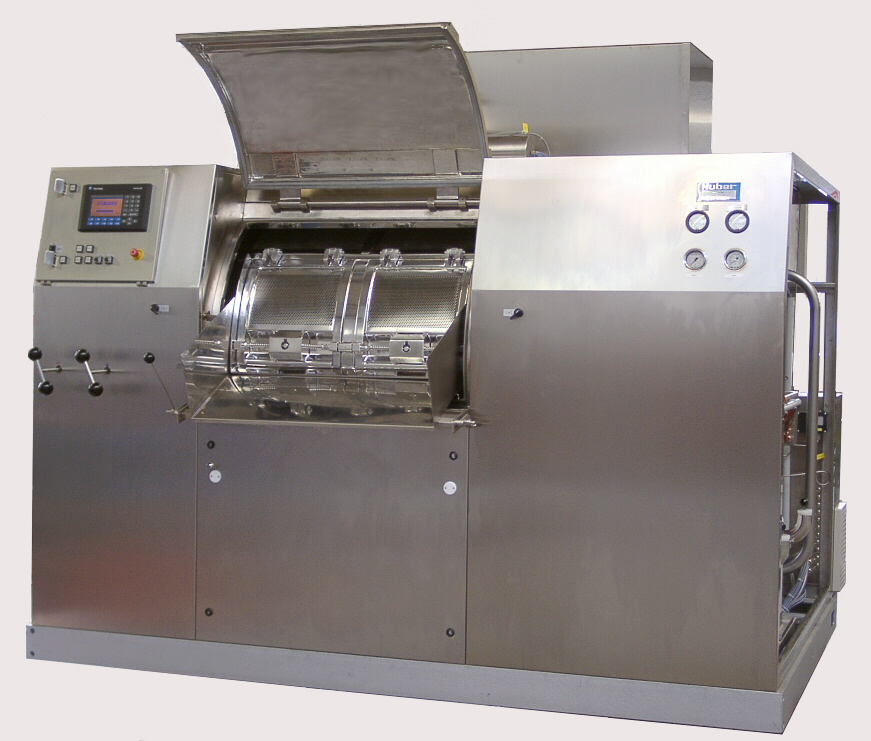

Washes, rinses, siliconizes and dries stoppers, discharging them so that they are ready for sterilization. Cycle time is approximately 45-60 minutes.



CAPACITY

MODEL DS 20 20 LITER
MODEL DS 40 40 LITER
MODEL DS 100 C (installed in a partition wall) 100 LITER
MODEL DS 200 200 LITER
MODEL DS 280 280 LITER

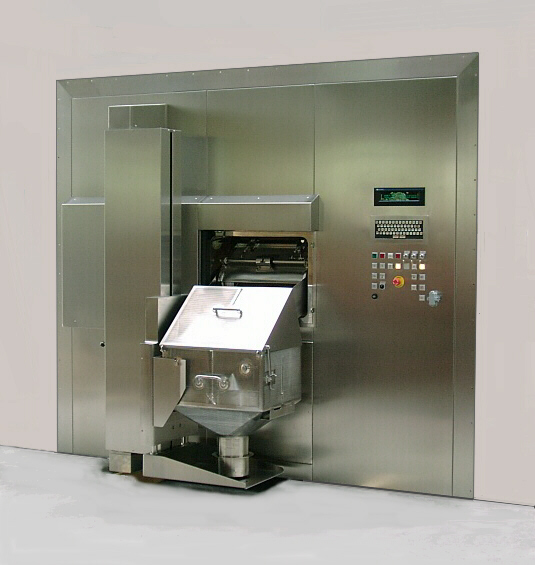

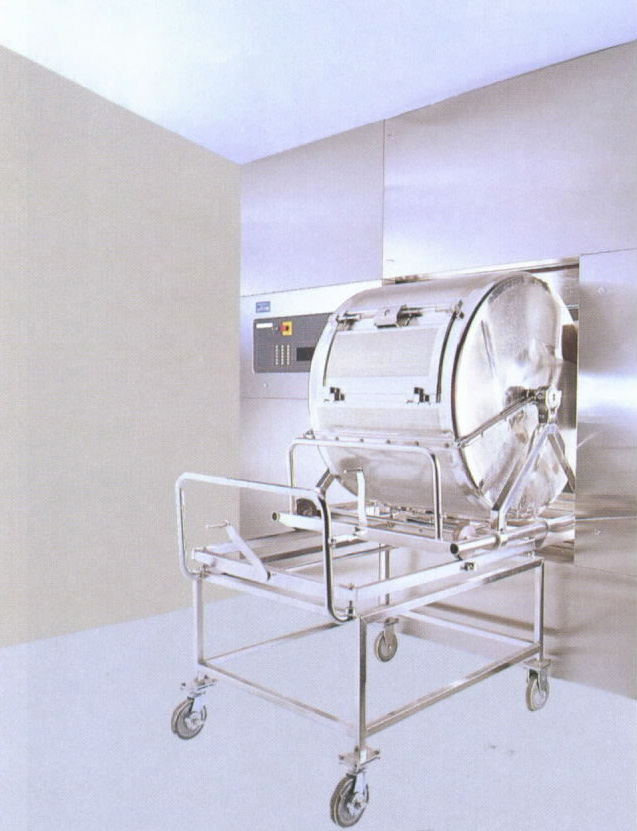

These units are all pass through design which allows for a "dirty side, clean side" setup with a machine being placed in a separation wall.

CAPACITY
MODEL DS 100 D 100 LITER
MODEL DS 200 D 200 LITER
MODEL DS 280 D 280 LITER

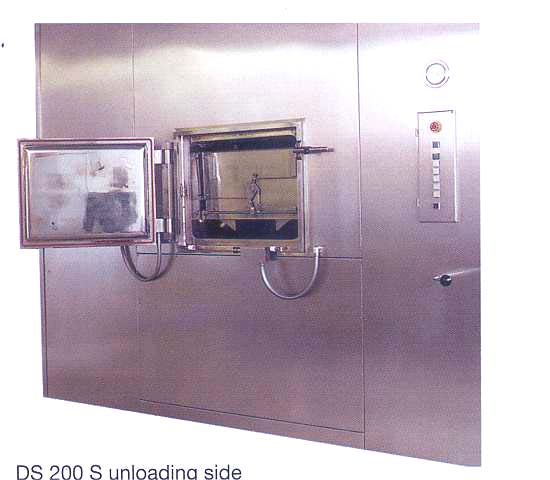

The Washers/Sterilizer units are dedicated units to wash, rinse, siliconize, sterilize and dry stoppers, ready for deposit into the sterile suite. Only sterilized stoppers are presented to the sterile suite. These units are all pass through designs as well
CAPACITY
MODEL DS 50 S 50 LITER
MODEL DS 70 S 70 LITER
MODEL DS 100 S 100 LITER
MODEL DS 200 S 200 LITER
MODEL DS 250 S 250 LITER
MODEL DS 375 S 375 LITER

The washer/sterilizer/autoclave models are dedicated units to wash, rinse, siliconize, sterilize and dry stoppers. Ready for deposit into the sterile suite. Only sterilized stoppers are presented to the sterile suite.  These units are all pass through designs and can be used as a stand alone autoclave as well.

CAPACITY

MODEL HWS 100 100 LITER
MODEL HWS 150 150 LITER
MODEL HWS 200 200 LITER
MODEL HWS 250 All special order machines 250 LITER

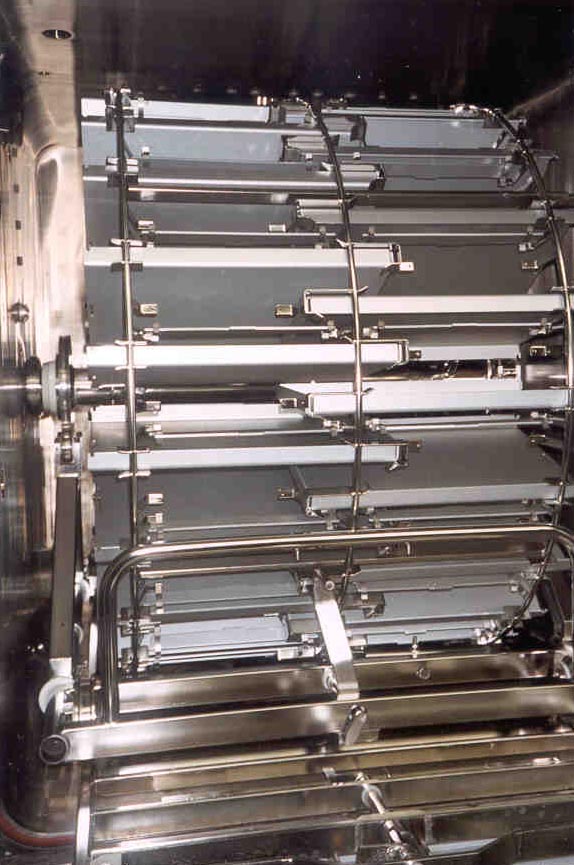

The washer/sterilizer/autoclave models are dedicated units to wash, rinse, siliconize, sterilize and dry stoppers. Ready for deposit into the sterile suite. Only sterilized stoppers are presented to the sterile suite.  These units are all pass through designs and can be used as a stand alone autoclave as well. The Tray version can also wash, sterilize and dry lyophilizer trays including optional gates and clips.


MODEL HWS 100 T (*subject to change) SPECIAL ORDER 22 TRAYS*
MODEL HWS 150 T  44 TRAYS
MODEL HWS 200 T 44 TRAYS
MODEL HWS 250 T 86 TRAYS

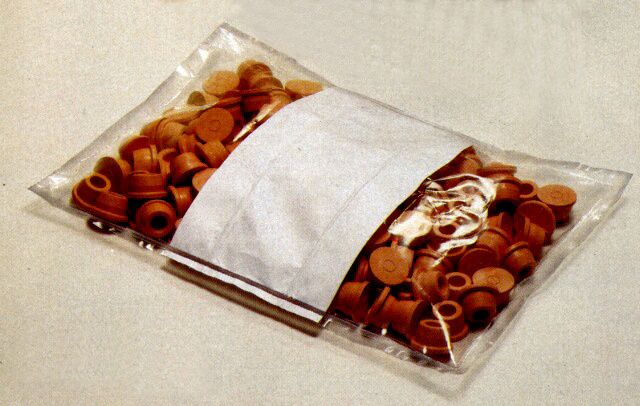

The washer/sterilizer/autoclave models are dedicated units to wash, rinse, siliconize, sterilize and dry stoppers. Ready for deposit into the sterile suite. Only sterilized stoppers are presented to the sterile suite.  These units are all pass through designs and can be used as a stand alone autoclave as well. The TYVEK Bag version can also sterilize and dry Tyvek Bags.




MODEL HWS 100 B
MODEL HWS 150 B

See sizing link for autoclave chamber capacity of HWS and HWS T.
